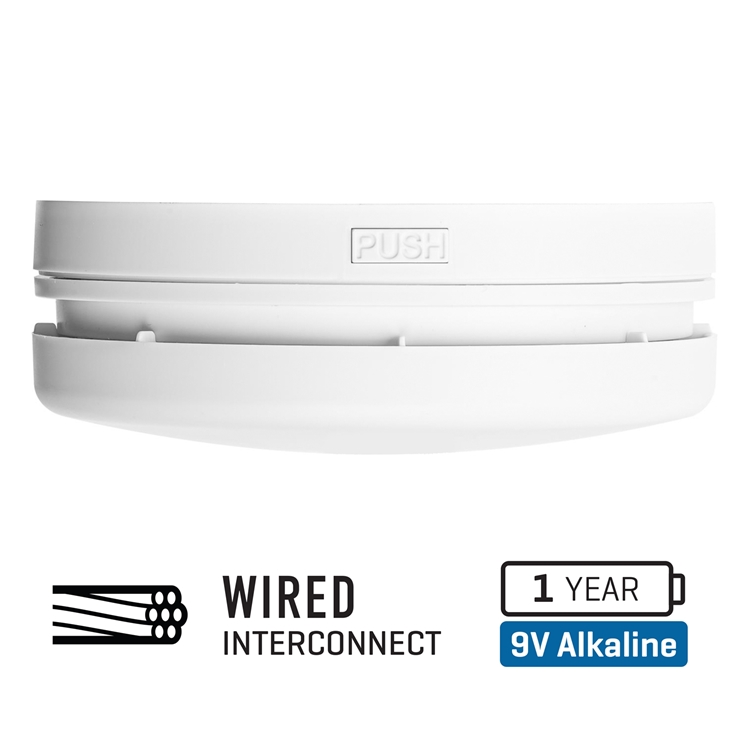

The Alkaline Battery Smoke Alarm is an affordable option for price-sensitive jobs, while still being backed by Voltex's 7-Year Warranty and featuring dual-beam smoke detection technology to minimize false alarms.

Less False Alarming
The smoke detection chamber has been redesigned to incorporate two detection beams instead of one. This double detection method allows the unit to more accurately determine a sudden increase in airborne particles, reducing false alarms.

Rigorously Tested
Voltex has invested in a state-of-the-art Smoke alarm testing chamber (one of a few in Australia) which is used to provide accurate in-house testing. This testing has allowed Voltex to identify and rectify nuisance alarming triggers to ensure Voltex is providing the best solution for your customers.

Voltex Smoke Alarm Compatibility Chart

Configurations




Parts + Labour Warranty
If there ever happens to be a faulty smoke alarm, Voltex will cover* your parts, labour, and travel time to replace the unit.
-7 Year Warranty: Smoke Alarm Unit.
-1 Year Warranty: 9V Alkaline Battery.
*Fair Terms and Conditions apply. Learn more.
Product Code | SASMH9VALK |
Power Supply | 240Va.c. mains connected, with replaceable non-rechargable 1 year Alkaline Backup Battery (9V DC) |
Interconnectivity | Hard Wired only to 9V Voltex Smoke Alarm. Use SASMV9VRF for Wireless Option. |
Terminal Size | Max 2x 2.5mm2 |
Sensing Type | Photoelectric |
Interconnection (Hardwired) | Maximum 24 paired alarms, Maxium length 150m with 1.5mm2 SDI cable. Accepts 10mm x 16/25mm trunking into base for surface mounting applications. |
Size | 133mm (W) X 49mm (H) |
Operation Temperature | 0°C to +45°C |
Operation Humidity | 5- 95% RH |
Alarm Volume | 85db at 3m (ISO 8201 Alarm Signal Pattern) |
Hush Time | 10 mins |
Compliance | AS3786:2014 + A1:2015 + A2:2018 |
